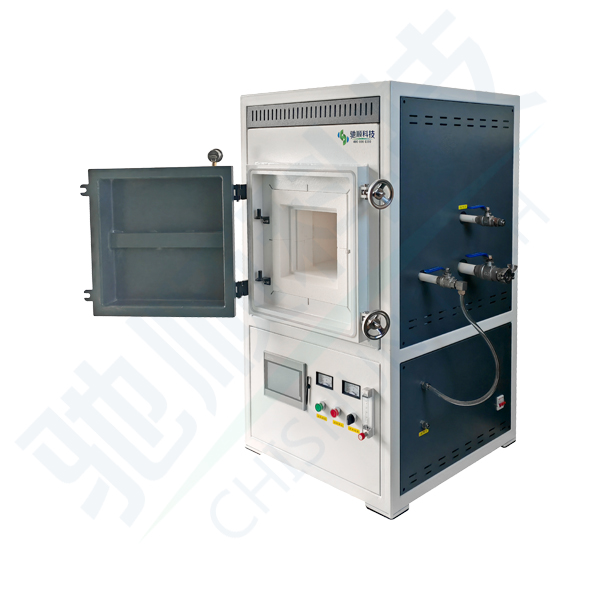

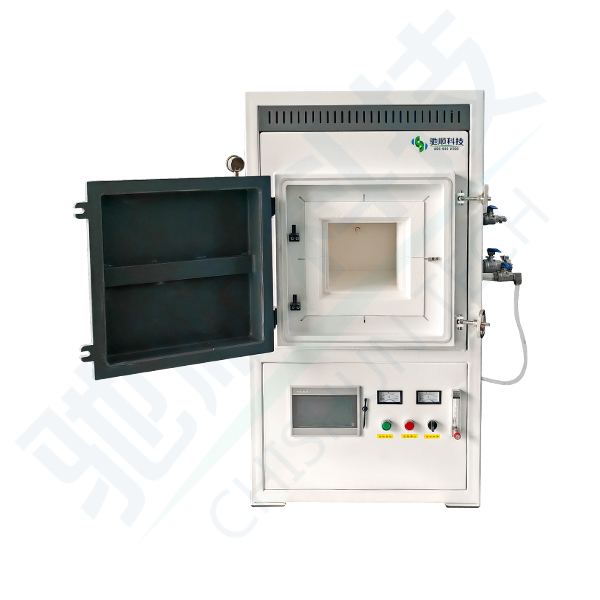

The furnace body of the 1200C chamber atmosphere furnace has a flange-type sealed structure. During the heat treatment of materials, protective gases such as nitrogen, argon, and oxygen can be introduced into the heat treatment of carbon materials, metal materials, and biomass materials. It can also be used for lithium Sintering of battery ternary materials.

Furnace shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.

2、 Sturdy metal tank shell structure with low furnace surface temperature

3、Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating

Refractory material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption

Heating system

1、High-quality heating element installed on both sides of the furnace safely and firmly with free heat radiation heating in the furnace chamber and energy saving and high efficiency for long service life

2、Heating element on both sides (left and right) for good uniformity in the furnace

Temperature Control Panel

1、PID with SSR control mode for precise temperature control

2、International standard thermocouple with long service life

3、The studio chamber size can be selected up to 1000L, suitable for factories production

Program Controller

1、Advanced controllers for complex process needs

2、Simple and direct operation, flexible programming

3、Programmable 30 program segments for a single curve

4、Over temperature and fault alarm with automatic safety protection

Vacuum Atmosphere Function

1、The furnace chamber has adjustable air inlet and air outlet port, which can be passed into the protective gas

2、 High-performance rotary vane vacuum pump, which can obtain a vacuum degree of 20000pa

3、Optional air circuit control unit, the control unit can choose 1-3 adjustable gas float meter

Specifications
